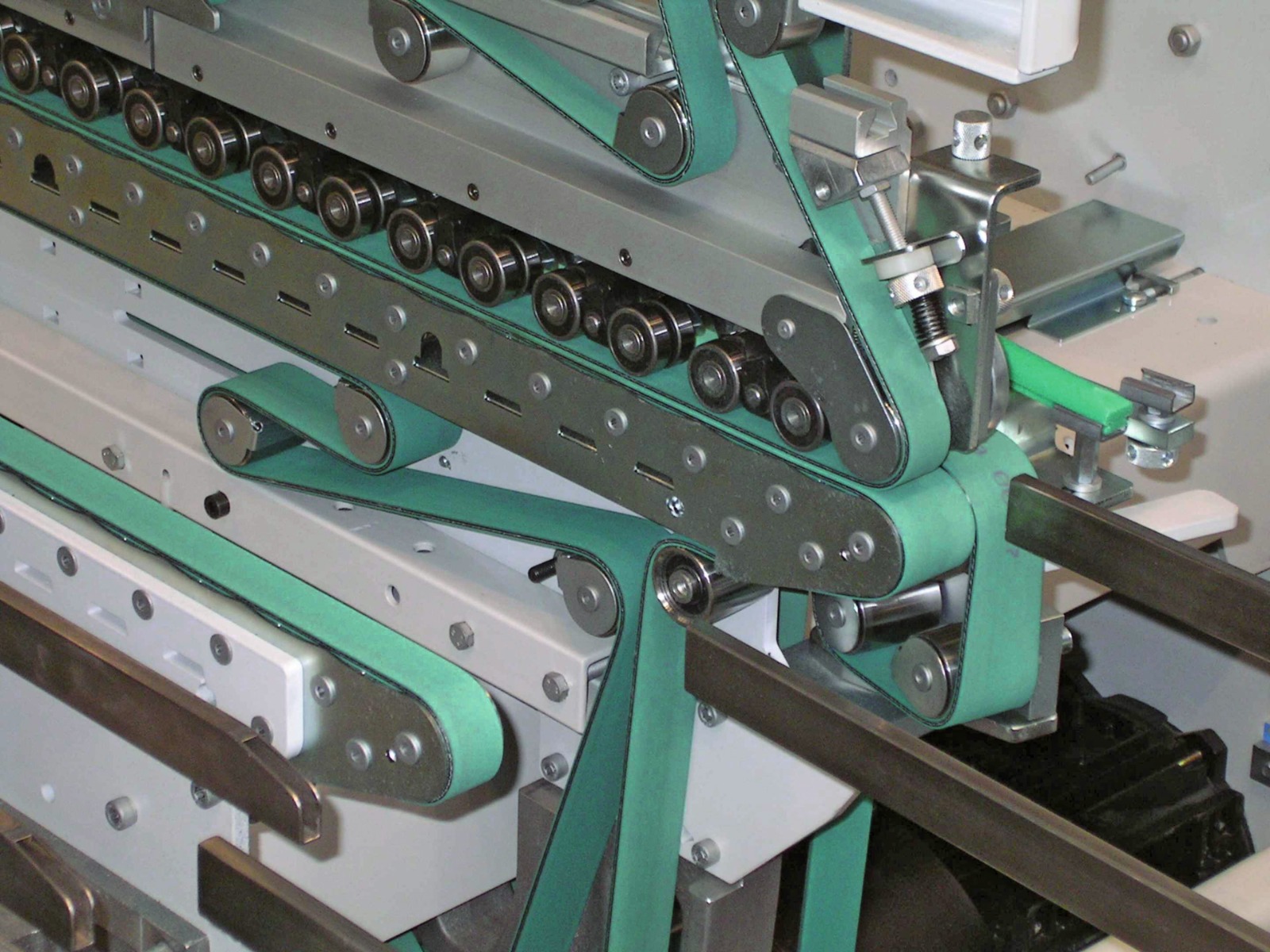

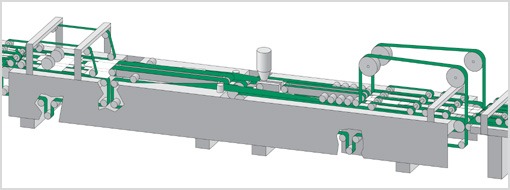

Perfect offers Folder Gluer & feeder belts for packaging & gluing machines, box folding & corrugated cardboard industry. These belts exhibit:
- High co-efficient of friction for exceptional gripping
- Excellent directional stability.
- High resistance to abrasion, oil & solvents.
Technical Specifications
| Belt Grade | Top Cover | Reverse Cover | Traction Layer | Total Thickness | Shaft Load 1% | Min Pulley | Belt Weight approx. | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Material | Colour | Surface | Material | Colour | Surface | Material | (mm) | (N/mm) | (mm) | (Kg/Sq. mtr.) | |
| PT 30-IMP | Soft-NBR | Light Green | Rough | Soft-NBR | Yellow | Rough | Polyamide | 3 | 5 | 30 | 3.5 |
| PT 40-IMP | Soft-NBR | Light Green | Rough | Soft-NBR | Yellow | Rough | Polyamide | 4 | 5 | 40 | 4.5 |
| PT 50-IMP | Soft-NBR | Light Green | Rough | Soft-NBR | Yellow | Rough | Polyamide | 5 | 7.5 | 50 | 5.7 |
| PT 60-IMP | Soft-NBR | Light Green | Rough | Soft-NBR | Yellow | Rough | Polyamide | 6 | 7.5 | 60 | 7.1 |
